GTU-TERA®

Precision Machining Smoke Purifier

Product Overview

GTU-3101 Series Smoke Purifiers, designed for laser marking, low-power laser welding, laser drilling, plasma cleaning, and more. Equipped with a high-pressure dedicated fan and an efficient filtration system to effectively capture and treat smoke and dust generated during production.

High-pressure design, compatible with multiple operating conditions
High-efficiency filtration system meets emission standards
Stable operation with energy-efficient performance
Spark-proof design for safety and reliability
Modular filter for easy replacement
Precision Machining Fume Purifier

Product Image

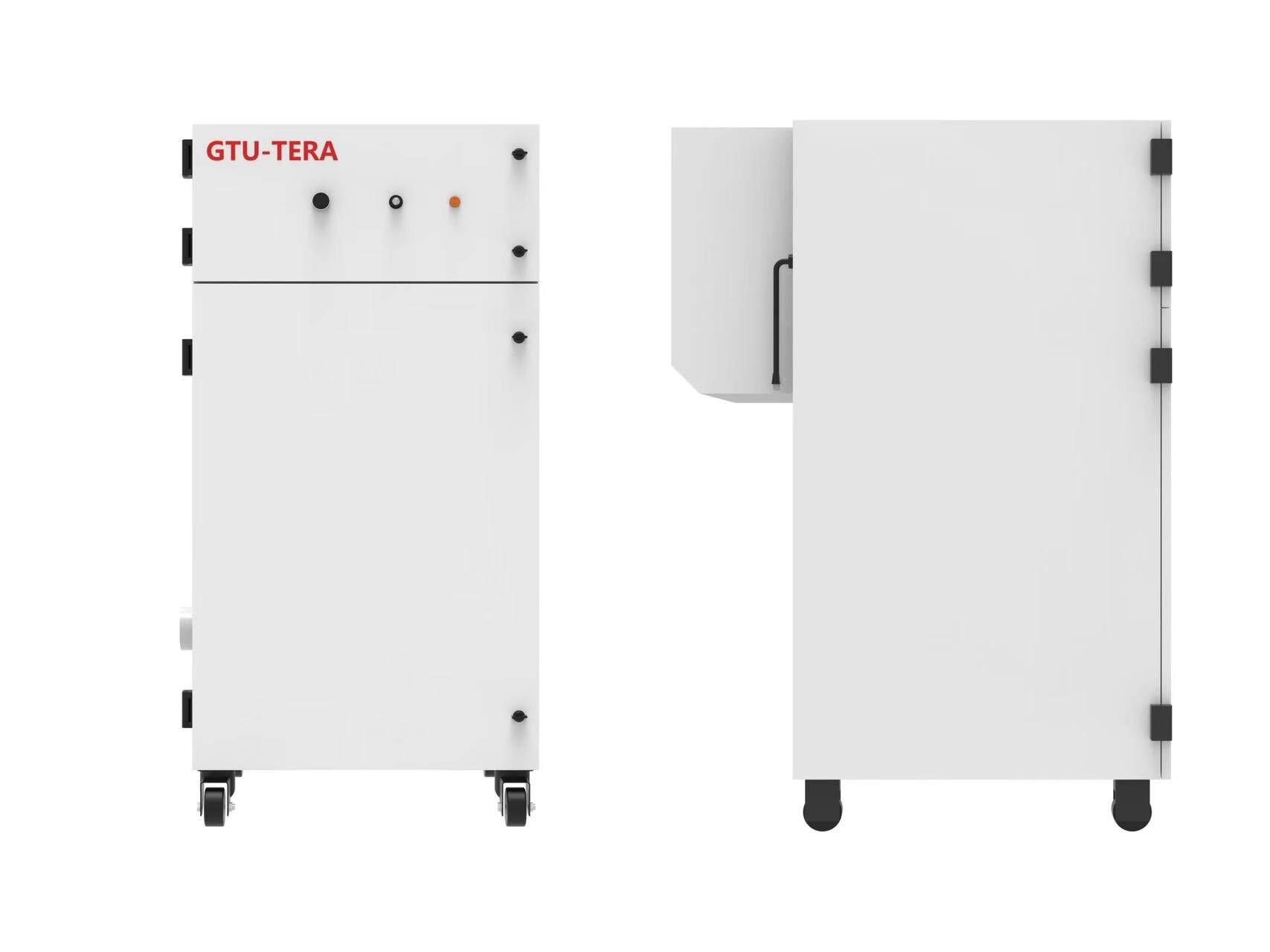

Precision Machining Fume Purifier - Dimensional Drawing

Technical Specifications

Model3101-TH3/3101-TH12
Airflow Volume300 m³/h / 800 m³/h
Rated Power300W / 1200W
Filtration Efficiency99.997%
Noise Level≤65dB(A)
Rated negative pressure4200 Pa / 10000 Pa
Filtration Area20m² / 23m²
Dimensions530×470×960mm
Weight60kg / 65kg
Spark ArrestorSpark Arrestor / Flame-Retardant High-Temperature Filter Media

Operating Conditions

Laser Marking Smoke Extraction

Low-Power Laser Welding Fume Extraction

Laser Drilling Smoke Purification

Laser Marking Fume Treatment

Small-Power Laser Cutting Fume Collection

Get Detailed Plan

Based on your specific requirements, we will provide a detailed product proposal and technical specifications.
