Custom Small Dust Collector
Product Overview
The GTU-CUSTOM series features custom-built compact dust collectors tailored to your site conditions and space constraints. With a compact design occupying less than 1 m², it flexibly adapts to various production environments—ideal for small machining workshops, laboratories, and welding stations.
Compact design, footprint <1 m²
Custom-designed for on-site conditions
Efficient filtration meets environmental standards
Easy to install, ready to use
Low-noise operation for a better work environment

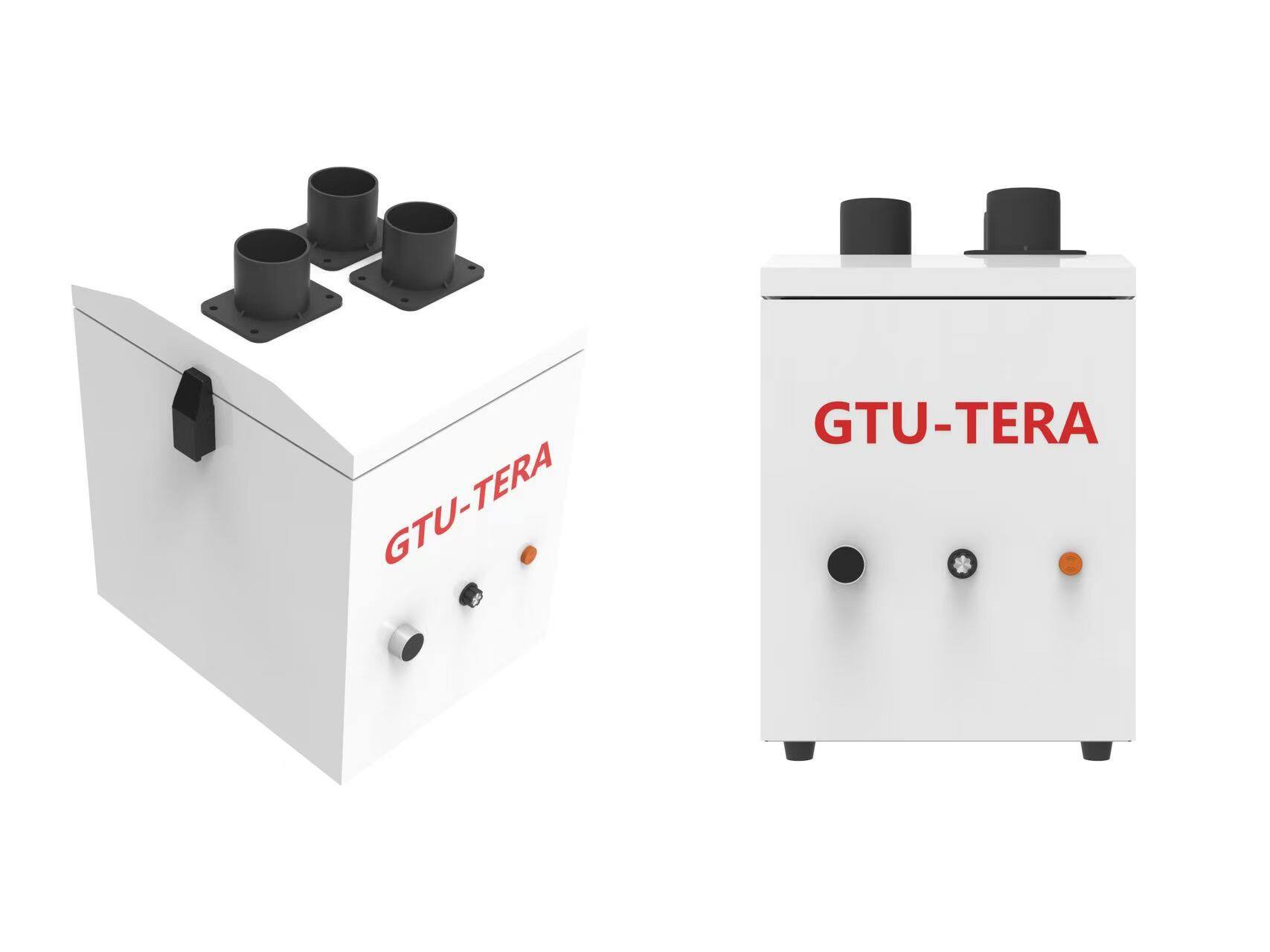

Product Image
Technical Specifications
| Airflow Capacity | 500-3000 m³/h (custom) |
| Filtration Efficiency | 99.5%-99.9% |
| Device Dimensions | Customized on-site |
| Power | 0.37-3kW |
| Filter by Material | Polyester/PTFE/Anti-static Filter Media |
| Dust Removal Method | Pulse Reverse Blow / Manual Cleaning / Automatic Cleaning |
| Noise Level | ≤65dB(A) |
| Operating Temperature | Room Temperature / High Temperature (Custom) |
| Explosion-proof rating | Standard / Explosion-proof (optional) |
| Installation Method | Floor/Wall-mounted (Optional) |
Applicable Operating Conditions
Dust Collection for Small Processing Workshop
Laboratory environment purification
Welding fume extraction
Powder Processing Station Dust Collection
Dust Collection for Grinding and Polishing
Get Detailed Plan
Based on your specific requirements, we will provide a detailed product proposal and technical specifications.
Get a Quote
